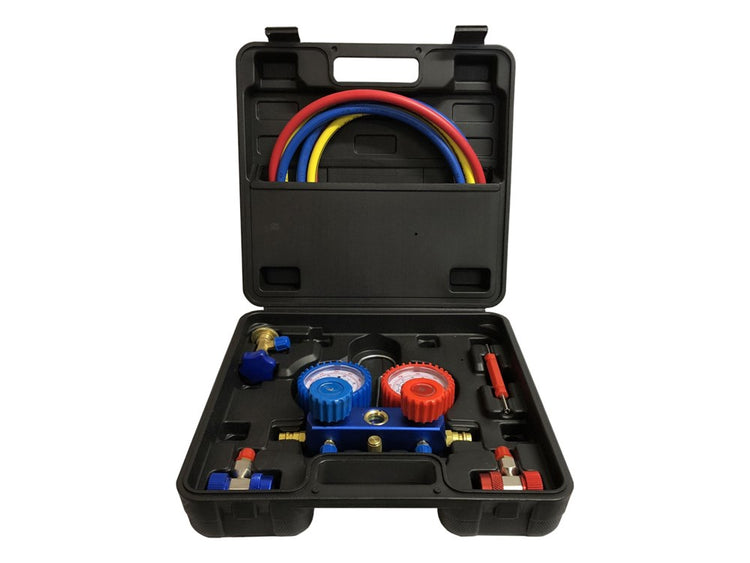

Manifold Gauge AC Tester Set DJPE-23029

The Manifold Gauge Set for Air Conditioning (AC-Diagnostic) is a high-quality diagnostic tool designed for use with R-134A refrigerant systems. It is perfect for automotive HVAC technicians and DIYers working on air conditioning systems. Here's a detailed overview of its features and specifications:

Key Features:

• Designed for R-134A Refrigerant: This set is specifically made for use with R-134A refrigerants, commonly found in modern automotive A/C systems.
• Adjustable Quick Couplers: Includes two quick couplers that allow for easy connection and disconnection to the A/C system.
• Three Colored Hoses: The set comes with three color-coded hoses for better organization and clear identification of low, high, and service ports.
• Knurled Fitting and Twist Valves: For secure connections and ease of use, the manifold features knurled fittings and twist valves.
• Great for Diagnostics: Ideal for measuring pressure in both the high and low-pressure sides of an A/C system, allowing technicians to diagnose issues like leaks, blockages, or improper refrigerant levels.

Specifications:

• Low Pressure Gauge:
  • Range: 0–120 psi (0–8.5 kg/cm²)
  • Accuracy: ±2%
  • Color: Blue
• High Pressure Gauge:
  • Range: 0–500 psi (0–35 kg/cm²)
  • Accuracy: ±2%
  • Color: Red
• Hoses:
  • Blue Hose: 1/4" FFL x 50 inches (low-pressure side)
  • Red Hose: 1/4" FFL x 50 inches (high-pressure side)
  • Yellow Hose: 1/2" ACME x 50 inches (for refrigerant tank or charging port)
• Pressure Range:
  • Low Pressure: 0–120 psi (0–8.5 kg/cm²)
  • High Pressure: 0–500 psi (0–35 kg/cm²)
