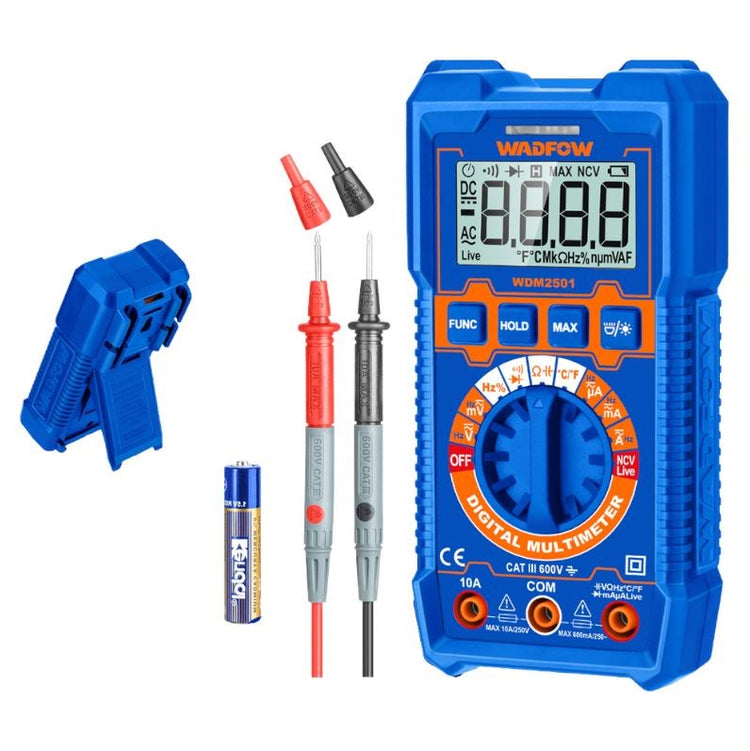

Digital Multimeter WDM2501

Brand New Digital Multimeter

The Digital Multimeter is an essential tool for anyone involved in electrical work, providing the ability to measure voltage, current, and resistance with precision. Its user-friendly design and comprehensive functionality make it suitable for both professionals and DIY enthusiasts.

Key Features:

• Easy-to-Read Display:

  • Equipped with a True RMS display that offers 4000 counts for clear and accurate readings.

• Versatile Measurement Functions:

  • Measures DC and AC Voltage (up to 600V)
  • Measures DC and AC Current (up to 10A)
  • Measures Resistance (up to 40MΩ)
  • Measures Capacitance (up to 4mF)
  • Frequency measurement (up to 4MHz)

• Additional Testing Functions:

  • Continuity Testing and Diode Testing
  • Non-contact Voltage Detection for added safety
  • Live Test feature

• User-Friendly Features:

  • Auto Range and Data Hold functions for convenience
  • Low Battery Indication to prevent unexpected shutdowns
  • Auto Power Off to save battery life
  • Backlight for easy reading in low-light conditions

• Compact and Durable:

  • Designed for various applications, from automotive repairs to household electrical tasks.

Specifications:

• Display: True RMS, 4000 counts
• Temperature Measurement: Yes
• Voltage Measurement:
  • DC: 400mV, 4V, 40V, 400V, 600V
  • AC: 400mV, 4V, 40V, 400V, 600V
• Current Measurement:
  • DC: 400μA, 4000μA, 40mA, 400mA, 10A
  • AC: 400μA, 4000μA, 40mA, 400mA, 10A
• Resistance Measurement: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
• Capacitance Measurement: 4nF, 40nF, 400nF, 4µF, 40µF, 400µF, 4mF
• Frequency Measurement: 4Hz, 40Hz, 400Hz, 4kHz, 40kHz, 400kHz, 4mHz
• Battery: 2pcs LR03 AAA batteries included
• Packed by: Color box

Conclusion:Upgrade your toolkit with the Digital Multimeter for reliable and precise electrical measurements. Whether you’re troubleshooting circuits or conducting maintenance, this versatile instrument is designed to meet all your measuring needs effectively.
