3HP ELECTRIC MOTOR SINGLE PHASE

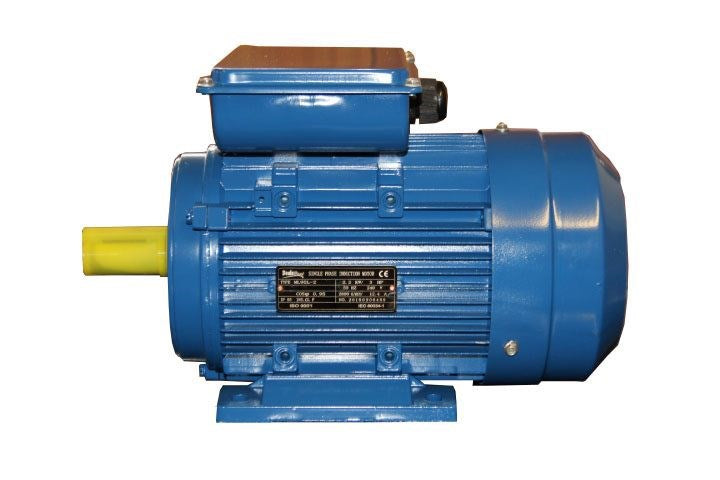

3HP Electric Motor – Single Phase | 2.2kW 2800RPM
Model ML90L-2 | High Performance | 12-Month Warranty

Power your equipment with confidence using this 3HP Single Phase Electric Motor, built for reliability in demanding industrial and commercial environments. Ideal for use with air compressors, pumps, medical devices, refrigeration units, machine tools, and small machinery, this motor is designed for high run loads and consistent performance.

The ML90L-2 features a 2-pole 2800 RPM operation and is built to 240V single-phase standards, making it perfect for workshops, factories, and heavy-duty equipment setups.

Specifications:

• Model: ML90L-2

• Power: 3HP / 2.2kW

• Voltage: Single Phase – 240V

• Max Current: 12.4 Amps

• Speed: 2 Pole / 2800 RPM

• Insulation Class: B3

• Shaft Diameter: 24mm

• Shaft Length: 50mm

• Keyway Slot: 8mm

Dimensions:

• Motor Body Size (Excl. Shaft): 295mm (L) x 200mm (W) x 225mm (H)

• Baseplate Size: 152mm (W) x 174mm (L)

• Mounting Holes (Front to Rear): 100–125mm

• Mounting Holes (Across): 140mm

• Plug: Not included

Features:

• High torque for heavy-duty applications

• Sturdy construction for long service life

• Compatible with a wide range of industrial equipment

• Smooth and quiet operation

• 12-Month Warranty included
